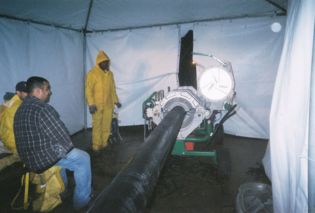

Pipe being fused outside the structure

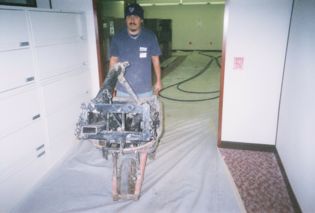

Pulling machines moved into building disassembled and in wheel barrows

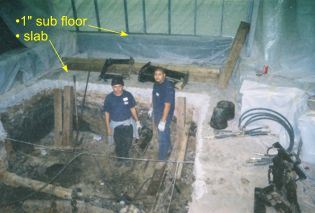

8' pit being dug through sub-floor and slab

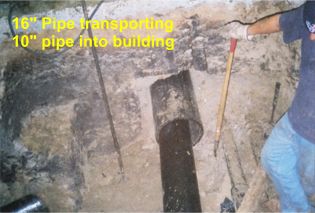

10" pipe being brought in through new 16" pipe

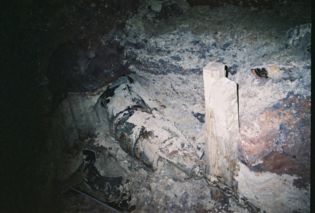

Soft soil required shoring with 6x6s

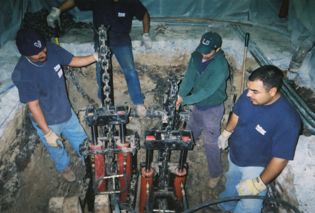

60 ton and 40 tom machines teamed and using hollow breaking cones
10" pipe being pulled in on 45³ angle
10" pipe being pulled in on 45³ angle

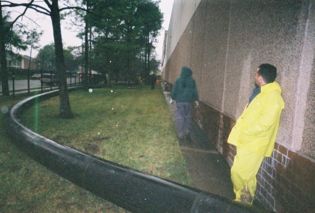

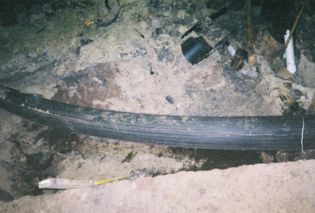

16" pipe being pulled from outside the building
16" pipe being pulled in on 45³ angle
8' pit being dug through sub-floor and slab

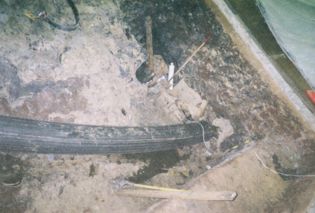

10" pipe being brought in through new 16" pipe
Trenchless Experts Since 1990
- Multiple pipe sizes, multiple floors and multiple turns!
This job was an interior project requiring machines and work pits to be at sites within the building itself. The project called for a total of 2000 feet of varying-diameter pipe to be pulled. Pipe diameters included 4″, 8″, 10″ and 16″. The 16″and some 10″ pipe were for storm drains, 10″ and 8″ pipe were used for sanitary sewer lines. New 16″ pipe was used as a conduit to transport 10″ pipe into the building. An 8′ deep pit was dug within the building through a 1″ thick, suspended concrete subfloor 18″ above the primary floor slab.
To accommodate the pull, equipment had to be moved inside manually and assembled within the pit. Pipe lengths were pulled from outside the building where they were pre-fused as necessary. In order to pull 16″ pipe, and to pull 10″ pipe through a 45³ angle, a 40 ton machine was teamed with a 60 ton machine creating a total of 100 tons of pulling power. The teamed machines required the use of hollow breaking cones to accommodate double-chaining.
